RCA Victor 21-S-500RU KCS93C
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1955 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 329756
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes

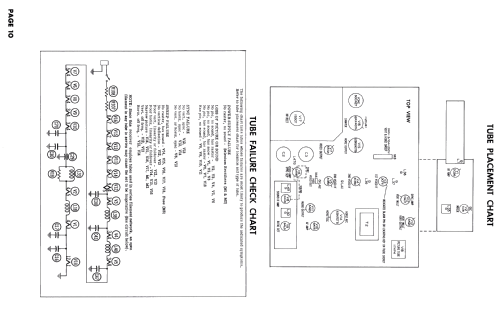

- 2AF4 4BQ7A 5X8 3CF6 3CB6 3CB6 5AN8 6S4A 3AU6 3AL5 3AV6 5AQ5 7AU7 5AQ5 6SN7GTB 12BQ6GTB 12AX4GTA 1B3GT 21YP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: RCA Victor 21-S-500RU KCS93C - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Notes
-
RCA Victor model 21-S-500RU is a 21” b/w TV with US standard VHF tuner channels 2 thru

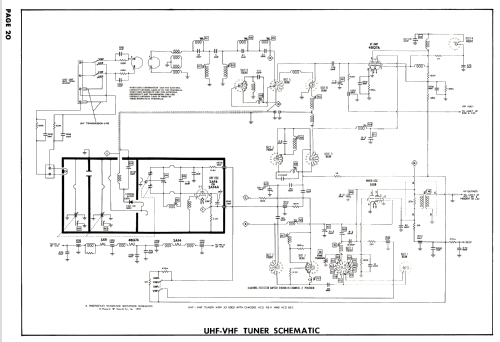

13, and 14 thru 83 UHF. Equipped with chassis KCS93C, VHF- UHF-tuner KRK33 and picture tube 21YP4A.
- Literature/Schematics (1)

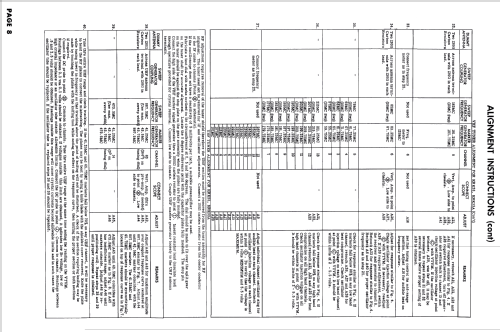

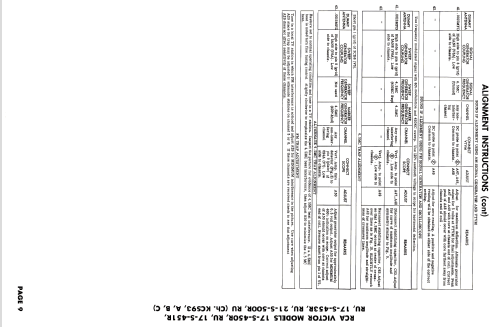

- Photofact Folder, Howard W. SAMS (Set 294 Folder 10 dated 10-55)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
