• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1931

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 54704

• • alternative name: RCA Manufacturing || Victor Talking Machine

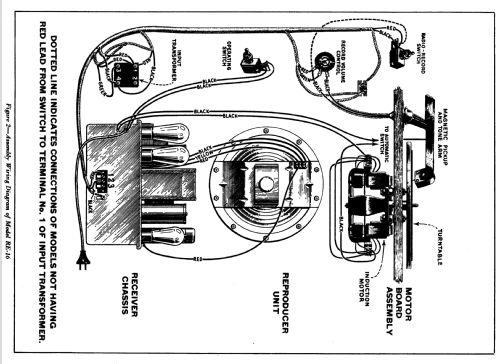

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 35 24 27 35 27 47 47 80

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: RE-16 Ch= R-7 - RCA RCA Victor Co. Inc.; New

• Shape
• Console, Highboy (legs > 50 %).

• Notes
• Not to be confused with RE-16A !
  Uses the standard R-7 chassis, plus phonograph plus speaker.

• Price in first year of sale
• 125.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Literature/Schematics (1)
• Rider's Perpetual, Volume 2 = 1932 and before (Rider's Perpetual, Volume 7, Changes Page 7-15)

• Literature/Schematics (2)
• RCA Victor Service Notes "Red Book" Series

• Other Models

• Here you find 5118 models, 3224 with images and 4152 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
