RF Signal Generator WR-50-B
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1975 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 118739
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Vista desde frente
aus ebay, #380334971525, Verkäufer sx28
aus ebay, #380334971525, Verkäufer sx28
aus ebay, #380716269216, Verkäufer sx28
aus ebay, #380716269216, Verkäufer sx28
aus ebay, #380716269216, Verkäufer sx28
aus ebay, #380716269216, Verkäufer sx28
aus ebay, #380716269216, Verkäufer sx28

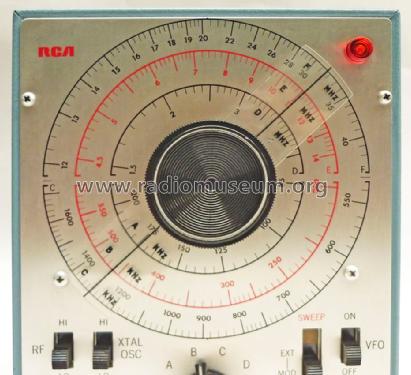

Vista del dial
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Wave bands
- - without
- Power type and voltage
- 120-240 Volt
- Material
- Metal case
- from Radiomuseum.org
- Model: RF Signal Generator WR-50-B - RCA RCA Victor Co. Inc.; New
- Dimensions (WHD)
- 7 x 5 x 4 inch / 178 x 127 x 102 mm
- Net weight (2.2 lb = 1 kg)
- 0.2 kg / 0 lb 7 oz (0.441 lb)
- Source of data
- - - Data from my own collection
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Silvino Arguelles. See "Data change" for further contributors.
