RFC11A "The Taurus" Ch= RC-1210C
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1964/1965
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 249538
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / Either: AC 50 to 60 cycles, 105 to 125V or DC: 105 to 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 2.25 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: RFC11A "The Taurus" Ch= RC-1210C - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 11.125 x 6.125 x 5.125 inch / 283 x 156 x 130 mm
- Notes
-
The RCA RFC11A is an AC/DC operated 6 tube AM/FM receiver. The AM frequency tuning range is 535 to 1620kHz and the FM frequency tuning range is 87.5 to 108.5MHz. Uses silicon rectifier in power supply. Has built-in loop antenna for AM and uses line cord for FM antenna, with provisions for using external FM antenna.
The following models use the same chassis and schematic:
Model Cabinet RFC11A White/Blue RFC11B White/Covert Tan
- Net weight (2.2 lb = 1 kg)
- 4 lb (4 lb 0 oz) / 1.816 kg
- Literature/Schematics (1)

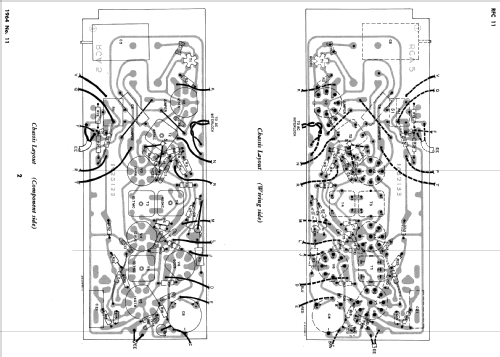

- - - Manufacturers Literature (RCA Radio Service Data Datasheet - File 1964 No. 11)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
