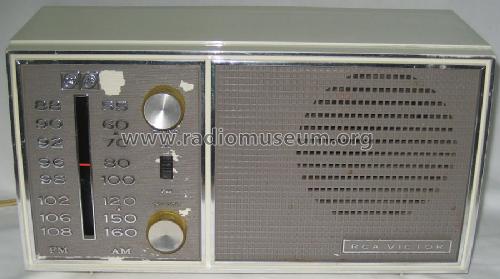

RFC11B Ch= RC-1210D

RFC11B Ch= RC-1210D; RCA RCA Victor Co. (ID = 1621085) Radio RFC11B Ch= RC-1210D; RCA RCA Victor Co. (ID = 1621086) Radio
RFC11B Ch= RC-1210D; RCA RCA Victor Co. (ID = 1621082) Radio RFC11B Ch= RC-1210D; RCA RCA Victor Co. (ID = 1621084) Radio
RFC11B Ch= RC-1210D; RCA RCA Victor Co. (ID = 1621067) Radio RFC11B Ch= RC-1210D; RCA RCA Victor Co. (ID = 1621073) Radio
RFC11B Ch= RC-1210D; RCA RCA Victor Co. (ID = 1621074) Radio RFC11B Ch= RC-1210D; RCA RCA Victor Co. (ID = 1621075) Radio
RFC11B Ch= RC-1210D; RCA RCA Victor Co. (ID = 1621063) Radio RFC11B Ch= RC-1210D; RCA RCA Victor Co. (ID = 1621064) Radio
Use red slider bar for more.
RFC11B Ch= RC-1210D; RCA RCA Victor Co. (ID = 1621085) Radio
RCA RCA Victor Co.: RFC11B Ch= RC-1210D [Radio] ID = 1621085 900x605
Select picture or schematic to display from thumbnails on the right and click for download.
For model RFC11B Ch= RC-1210D, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 17C9 19HR6 12BE6 12AU6 14GT8 50C5
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage AC/DC-set / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 2.25 W (max.)
from Radiomuseum.org Model: RFC11B Ch= RC-1210D - RCA RCA Victor Co. Inc.; New
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Circuit diagram reference Beitman Radio Diagrams Vol. 23, 1963
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 23, 1963

Model page created by John Kusching. See "Data change" for further contributors.
