For model RJC30W Ch= RC1232H, RCA (RCA Victor Co. Inc.); New York (NY):
RCA Walnut Case transistor radio RJC30W

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1967 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: SK3018 SK3018 SK3008 SK3018 SK3018 SK3020 SK3020 SK3021
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 1 AF stage(s)
Tuned circuits 5 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 3 inch = 7.6 cm
Power out
from Radiomuseum.org Model: RJC30W Ch= RC1232H - RCA RCA Victor Co. Inc.; New
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).

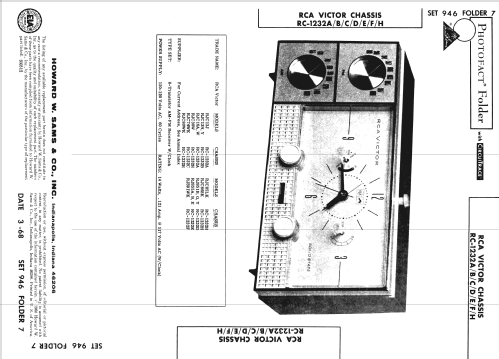

Source of data Photofact Folder, Howard W. SAMS
Circuit diagram reference Photofact Folder, Howard W. SAMS

Model page created by Jose Casas-Avalos. See "Data change" for further contributors.
