Radio Corporation of America RJG37E, RJG37N

RCA (RCA Victor Co. Inc.); New York (NY)

  • Year
  • 1966 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 96369
    • alternative name: RCA Manufacturing || Victor Talking Machine

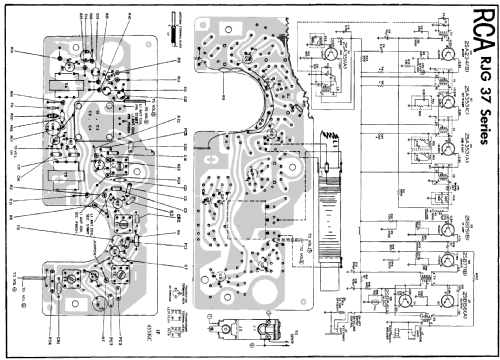

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 8
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / C: 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.3 inch = 8.4 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Radio Corporation of America RJG37E, RJG37N - RCA RCA Victor Co. Inc.; New
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 7 x 6 x 2.1 inch / 178 x 152 x 53 mm
  • Notes
  • RJG37E is black whereas RJG37N is ivory.

  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 27, 1967-69 (last vol.)
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
