- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1931
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 54724
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 105-125; 200-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 2.25 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: RO23 - RCA RCA Victor Co. Inc.; New
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 27.25 x 46 x 12.75 inch / 692 x 1168 x 324 mm
- Notes
- Built in SW-converter, 1st IF= 1075kHz .
- Net weight (2.2 lb = 1 kg)
- 76 lb (76 lb 0 oz) / 34.504 kg
- Price in first year of sale
- 117.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Circuit diagram reference
- Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
- Literature/Schematics (1)

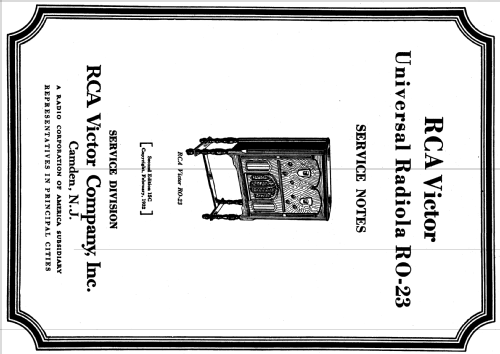

- RCA Victor Service Notes "Red Book" Series
