• Year
  • 1962 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 361846
    • alternative name: RCA Manufacturing || Victor Talking Machine

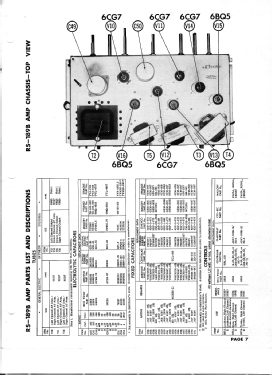

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110-120 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Ch= RS-189B - RCA RCA Victor Co. Inc.; New
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 12.5 x 5 x 7 inch / 318 x 127 x 178 mm
  • Notes
  • The RCA RS-189B is a console stereo phonograph amplifier.  It has 5 controls on the front, inputs for Tuner, Tape, Phonograph. It has an output jack for a reverberation unit and a return input jack from the reverberation unit.  It provides outputs for 3 channels of speakers, including left, right, and a center-channel woofer.  This model has additional AC power receptacles for a record player, reverberation unit and tuner.

  • Author
  • Model page created by Chad Phillips. See "Data change" for further contributors.
