- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1970 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 331057
-
- alternative name: RCA Manufacturing || Victor Talking Machine
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

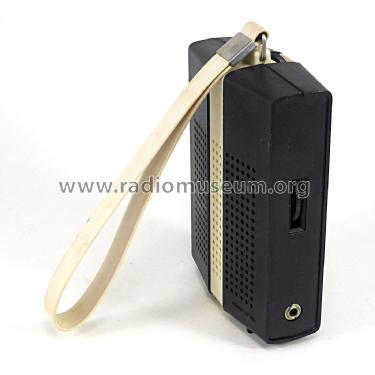

- Model: RZG 106E - RCA RCA Victor Co. Inc.; New
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 77 x 111 x 35 mm / 3 x 4.4 x 1.4 inch
- Notes
-
Very similar to RCA RZG 108E, the exact differences are unknown. Part of a popular series of RCA transistor radios known as "Pockettes" with model numbers from RZG 102 to 108 which debuted in 1969 and lasted until 1974.
Made in Hong Kong
- Author
- Model page created by Ray Albright. See "Data change" for further contributors.
