• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1960 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 138534

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes

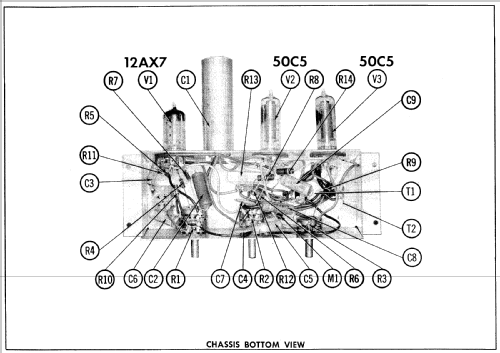

• 12AX7 50C5 50C5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org

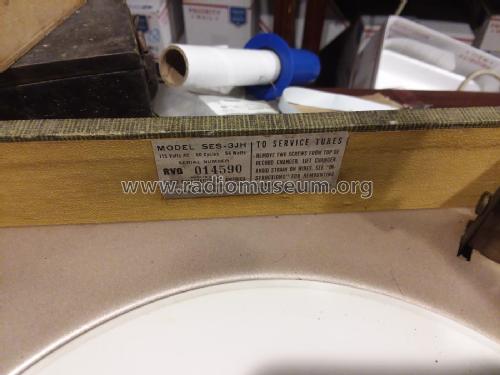

• Model: SES-3JH Ch= RS-184A - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Notes
• Diode Rectifier.
  The RCA Modell SES-3JH is an AC Operated 3 Tube Stereo Phono Amplifier with 4 Speed Automatic Record Changer.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 10-60, Set 501, Folder 13)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
