• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1932 ?

• Category
• Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter

• Radiomuseum.org ID
• 54768

• • alternative name: RCA Manufacturing || Victor Talking Machine

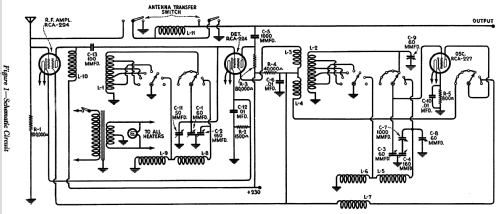

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 24 24 27

• Main principle
• RF Converter/Adapter (not voltage converter); ZF/IF 1075 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Alternating Current supply (AC) / 105-125;200-250 Volt

• Loudspeaker
• - - No sound reproduction output.

• from Radiomuseum.org
• Model: SWA2 - RCA RCA Victor Co. Inc.; New

• Dimensions (WHD)
• 13.25 x 16 x 11.375 inch / 337 x 406 x 289 mm

• Notes
• 7 bands: 13-200 m

• Net weight (2.2 lb = 1 kg)
• 14 lb (14 lb 0 oz) / 6.356 kg

• Price in first year of sale
• 39.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)

• Mentioned in
• Machine Age to Jet Age II (page 244.)

• Literature/Schematics (1)
• RCA Victor Service Notes "Red Book" Series
