T-1EH "The RIO" Ch= RC-1189

RCA (RCA Victor Co. Inc.); New York (NY)

  • Year
  • 1959
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 143463
    • alternative name: RCA Manufacturing || Victor Talking Machine

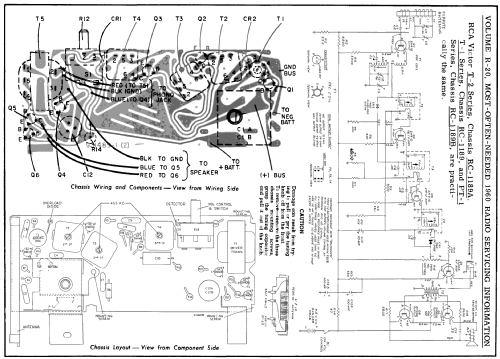

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 3 × 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
  • Power out
  • 0.15 W (0.225 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: T-1EH "The RIO" Ch= RC-1189 - RCA RCA Victor Co. Inc.; New
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 4.1 x 7 x 2.1 inch / 104 x 178 x 53 mm
  • Notes
  • The RCA T-1EH is a battery operated 6 transistor portable AM receiver.  The AM frequency tuning range is 540 to 1600kHz.  Uses Qty(3) 1.5V "C" size batteries.  Has built-in ferrite antenna and push-pull output stage that drives the speaker.  The speaker has a 130 ohm input impedance and is connected directly to the output stage.  Has earphone jack that disconnects the speaker for private listening.  The earphone is connected to the AF amplifier output (before the push-pull output stage).

    The following models use the same schematic and cabinet but have different cabinet colors:

    Model Cabinet
    T-1JE Charcoal and Champagne White
    T-1EN Champagne White and Monterey Red
    T-1EH Champagne White and Bermuda Turquoise

    Sams photofact set 478 folder 15 date 3-60 features the RCA models PT1 chassis RC-1189B, T1JE, T1EH, T1EN, T2E, T2J, T2K with chassis RC1189 and the models TC1E, TC1FE, TC1JE as the same schematic. TC1 series are clock versions.

    The case and chassis are identical to the Radiomarelli RD301.

  • Net weight (2.2 lb = 1 kg)
  • 1.5 lb (1 lb 8 oz) / 0.681 kg
  • Literature/Schematics (2)
  • - - Manufacturers Literature (RCA Radio Service Data Datasheet - File 1959 No. 5)
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
