• Year
  • 1959 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 143468
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 4,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

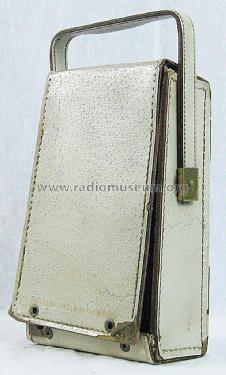

  • Model: T2E Ch= RC-1189 - RCA RCA Victor Co. Inc.; New
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Notes

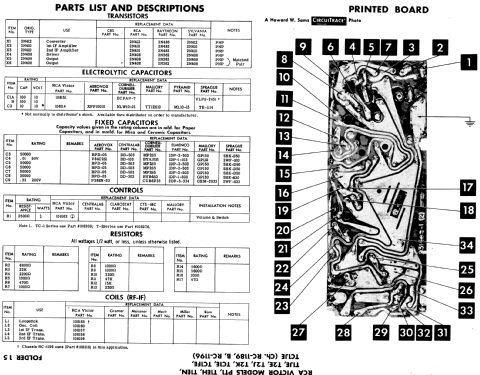

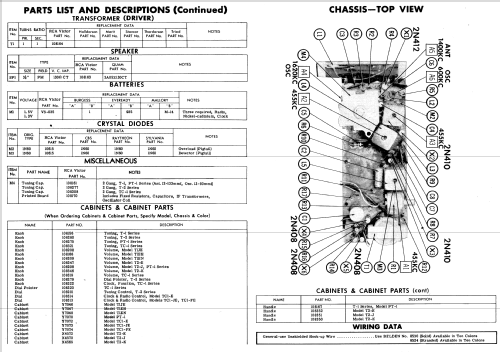

  • Sams photofact set 478 folder 15 date 3-60 features the RCA models PT1 chassis RC-1189B, T1JE, T1EH, T1EN, T2E, T2J, T2K with chassis RC1189 and the models TC1E, TC1FE, TC1JE as the same schematic. TC1 series are clock versions.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
