TM-21D MI-40226-D

TM-21D MI-40226-D; RCA RCA Victor Co. (ID = 2248866) Television TM-21D MI-40226-D; RCA RCA Victor Co. (ID = 2248867) Television
Use red slider bar for more.

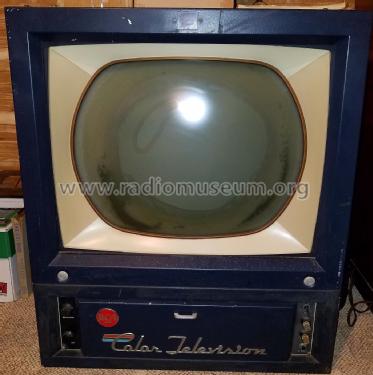

TM-21D MI-40226-D; RCA RCA Victor Co. (ID = 2248866) Television
RCA RCA Victor Co.: TM-21D MI-40226-D [Television] ID = 2248866 1400x1407
Select picture or schematic to display from thumbnails on the right and click for download.
For model TM-21D MI-40226-D, RCA (RCA Victor Co. Inc.); New York (NY):

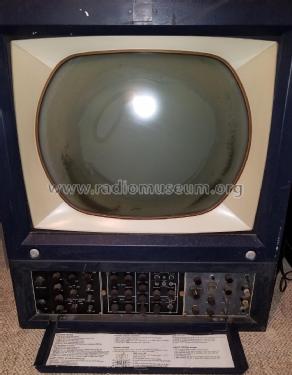

Monitor is in the condition that it was found in at a broadcast station in New York. Monitor is now in a private collection.

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1961–1965 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 62: 21FJP22 6AU8 6BQ7A 6AU8 6BQ7A 6AU8 6197 6197 6197 12AX7 12AX7 12AX7 6BQ7A 6AL5 6AN8 6AW8 6AW8 6AW8 12AT7 0A2 6BQ7A 6AW8 12AT7 6AW8 6AU8 6197 6AL5 12AT7 6197 6BQ7A 6AL5 6AW8 6AW8 6688 7119 6AL5 6BC7 12AT7 6W6 6CG7 12AT7 12AT7 12AT7 6CG6 6CG6 3B2 6AU4GTA 6AU4GTA 1X2B 6BK4 6BK4 6X4 6080 6080 6080 6080 12AX7 12AX7 12AX7 12AX7 12AX7 12AX7 5651 12AT7
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: TM-21D MI-40226-D - RCA RCA Victor Co. Inc.; New
Material Metal case
Shape Boatanchor (heavy military or commercial set >20 kg).
Dimensions (WHD) 27 x 32 x 28 inch / 686 x 813 x 711 mm
Notes

RCA Color Broadcast monitor. No sound reproduction. Uses line-level video input.

Net weight (2.2 lb = 1 kg) 213 lb (213 lb 0 oz) / 96.702 kg

Model page created by Benjamin Moyer. See "Data change" for further contributors.
