• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1935

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 95854

• • alternative name: RCA Manufacturing || Victor Talking Machine

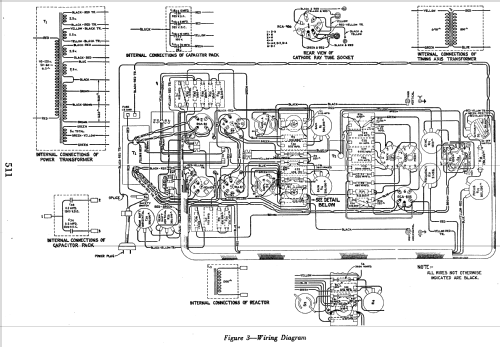

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 879 885 57 57 80 906-P3

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

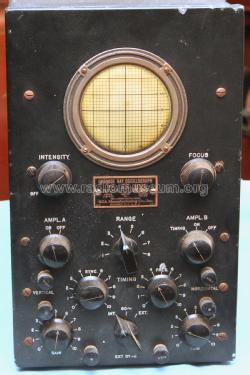

• Model: Cathode Ray Oscillograph TMV-122-B - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 12.25 x 7.25 x 17.75 inch / 311 x 184 x 451 mm

• Notes
• 3 inch cathode ray tube 906.

• Net weight (2.2 lb = 1 kg)
• 39.5 lb (39 lb 8 oz) / 17.933 kg

• Price in first year of sale
• 64.00 $

• Mentioned in
• Costa, Radioriparatore, Hoepli

• Literature/Schematics (1)
• 1938 Radolek Catalog

• Literature/Schematics (2)
• RCA Victor Service Notes "Red Book" Series

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
