TPR-8 Ch= RC-1193 Ch= RS-177
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 150293
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Sams photofact.

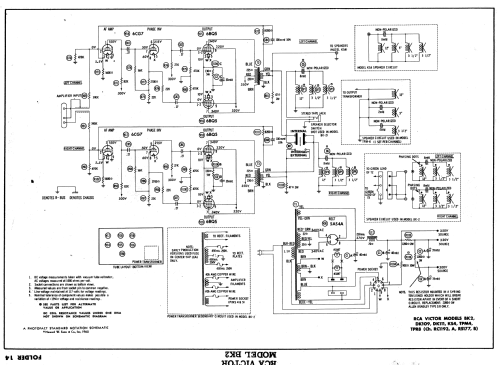

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- 6DT8 6BA6 6AU6 6AU6 EM84 6AU6 6AL5 6BA6 6BE6 6BA6 6AV6 6CG7 6CG7 6CG7 6CG7 6BQ5 6BQ5 6BQ5 6BQ5 5AS4A
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

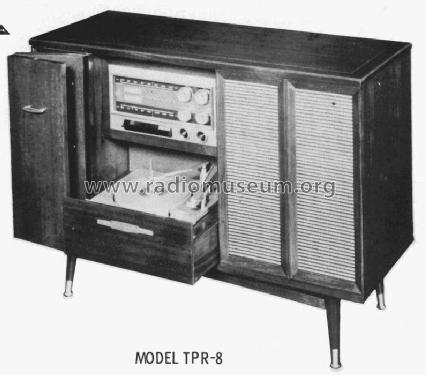

- Model: TPR-8 Ch= RC-1193 Ch= RS-177 - RCA RCA Victor Co. Inc.; New
- Shape
- Console, Lowboy (legs < 50 %).
- Notes

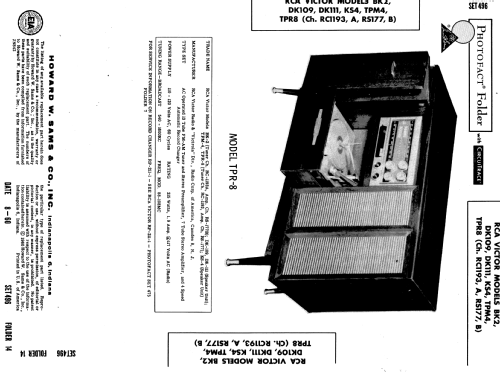

- AC operated AM - FM tuner, stereo preamplifier, stereo amplifier and 4 speed automatic record changer. Sams photofact set 496 folder 14 date 8-60 features the RCA model BK-2 with tuner chassis RC-1193A and amp chassis RS-177B, the models TPM-4 and TPR-8 with tuner chassis RC-1193 and amp chassis RS-177 as the same schematic.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 496 folder 14 date 8-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
