• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1938/1939

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 196087

• • alternative name: RCA Manufacturing || Victor Talking Machine

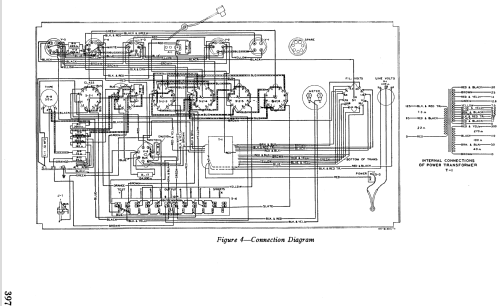

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 6J5

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100-125 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Tube Tester 156-A - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 8 x 5.75 x 13.5 inch / 203 x 146 x 343 mm

• Notes

• Model 156-A is a counter type tube tester. Model 156 is a portable type tube tester.

• Net weight (2.2 lb = 1 kg)
• 14 lb (14 lb 0 oz) / 6.356 kg

• Price in first year of sale
• 37.95 $

• Literature/Schematics (1)
• RCA Victor Service Notes "Red Book" Series

• Literature/Schematics (2)
• Radio Retailing (Radio & Television R.) (ad February 1939 page 41)

• Author
• Model page created by John Kusching. See "Data change" for further contributors.

• Other Models

• Here you find 5118 models, 3224 with images and 4151 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
