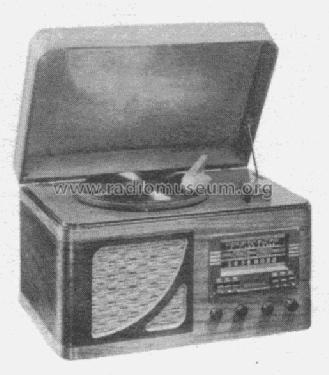

For model U12 Ch= RC-425A, RCA (RCA Victor Co. Inc.); New York (NY):
Data taken from RCA Service Notes

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6SA7 6SK7 6SQ7 6SF5 6F6G 6F6G 5Y3G
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out 5 W (unknown quality)
from Radiomuseum.org Model: U12 Ch= RC-425A - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 19.5 x 12.25 x 13.25 inch / 495 x 311 x 337 mm
Notes This model has 4 power supply ratings:
Rating A6...105-125V, 60 Cycles
Rating A5...105-125V, 50 Cycles
Rating C6...105-125;210-250V, 60 Cycles
Rating C5...105-125;210-250V, 50 Cycles
Price in first year of sale 59.95 USD
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) RCA Victor Service Notes "Red Book" Series
