For model U26 Ch= RC-386B, RCA (RCA Victor Co. Inc.); New York (NY):

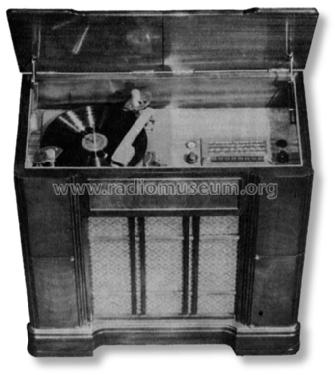

Image Courtesy of Mark V. Stein for Radiomuseum.org use only.

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6A8G 6K7 6Q7G 6J5 6U5 6K6G 6K6G 5Y3G
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out 5 W (unknown quality)
from Radiomuseum.org Model: U26 Ch= RC-386B - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 33.5 x 35 x 16.75 inch / 851 x 889 x 425 mm
Notes This model has 5 power supply ratings:
Rating A6...105-125V, 60 Cycles
Rating A...105-125V, 50-60 Cycles
Rating B2...105-125V, 25 Cycles
Rating C6...100-130;140-160;200-250V, 60 Cycles
Rating C...100-130;140-160;200-250V, 50-60 Cycles
Net weight (2.2 lb = 1 kg) 93.5 lb (93 lb 8 oz) / 42.449 kg
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Pre-War Consoles
Literature/Schematics (2) RCA Victor Service Notes "Red Book" Series


All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
