For model U9 RC-482C 2nd Prod, RCA (RCA Victor Co. Inc.); New York (NY):
Data taken from RCA Service Notes

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 0.7 W (unknown quality)
from Radiomuseum.org Model: U9 RC-482C [2nd Prod] - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 17.5 x 10.25 x 13.375 inch / 445 x 260 x 340 mm
Notes This model has 2 power supply ratings:
Rating A6...105-125V, 60 Cycles
Rating A5...105-125V, 50 Cycles
Net weight (2.2 lb = 1 kg) 22 lb (22 lb 0 oz) / 9.988 kg
External source of data Ernst Erb

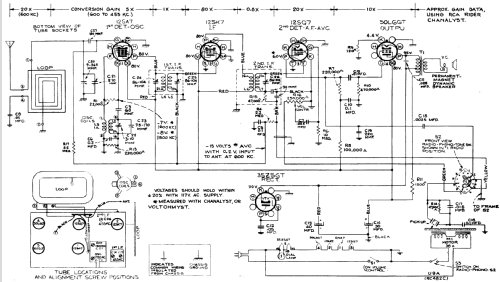

Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Literature/Schematics (1) RCA Victor Service Notes "Red Book" Series


All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
