U10 Ch= RC-418B

U10 Ch= RC-418B; RCA RCA Victor Co. (ID = 980995) Radio

U10 Ch= RC-418B; RCA RCA Victor Co. (ID = 980996) Radio

U10 Ch= RC-418B; RCA RCA Victor Co. (ID = 980997) Radio

U10 Ch= RC-418B; RCA RCA Victor Co. (ID = 980998) Radio

U10 Ch= RC-418B; RCA RCA Victor Co. (ID = 60191) Radio
U10 Ch= RC-418B; RCA RCA Victor Co. (ID = 1089188) Radio
Use red slider bar for more.
U10 Ch= RC-418B; RCA RCA Victor Co. (ID = 1089188) Radio
RCA RCA Victor Co.: U10 Ch= RC-418B [Radio] ID = 1089188 576x734

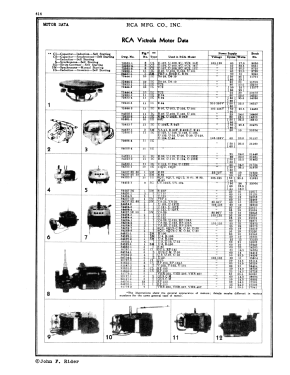

Select picture or schematic to display from thumbnails on the right and click for download.
For model U10 Ch= RC-418B, RCA (RCA Victor Co. Inc.); New York (NY):
Data taken from RCA Service Notes

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6SA7 6SK7 6SQ7 6F6G 5Y3G
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out 4.5 W (unknown quality)
from Radiomuseum.org Model: U10 Ch= RC-418B - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 15.25 x 11.375 x 13.125 inch / 387 x 289 x 333 mm
Notes This model has 4 power supply ratings:
Rating A6...105-125V, 60 Cycles
Rating A5...105-125V, 50 Cycles
Rating C6...105-125;200-250V, 60 Cycles
Rating 5...105-125;200-250V, 50 Cycles
Net weight (2.2 lb = 1 kg) 22.5 lb (22 lb 8 oz) / 10.215 kg
Price in first year of sale 44.95 USD
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 04, 1941
Literature/Schematics (2) RCA Victor Service Notes "Red Book" Series


All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
Here you find 4928 models, 2897 with images and 4002 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
