VFT65W Ch= RS-210A
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1964 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 93261
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Number of Transistors
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- 7 or more Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: VFT65W Ch= RS-210A - RCA RCA Victor Co. Inc.; New
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 60.125 x 24.625 x 18.875 inch / 1527 x 625 x 479 mm
- Notes
- Chassis RS-210A is an Power Amplifier used in models: VFT44W, VFT52M, VFT54L, VFT56C, VFT65W, VFT72W, VFT74L, VFT74Z, VFT76W, VFT82M, VFT82V, VFT83F, VFT83V, VFT84E, VFT85W and VFT86L.
To the models belongs also the Tuner Chassis RC-1215J or K wich are practically identical to the RC-1215E Chassis.

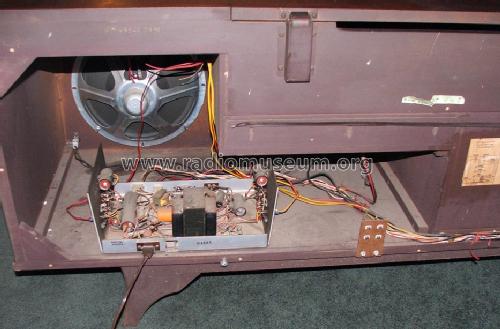

The model has left and right each a bass loudspeaker and 3 treble, in total 8 loudspeakers. There is a tuner tube chassis and a "speaker chassis" RS-210A with 8 transistors for two channels and 3 rectifiers.

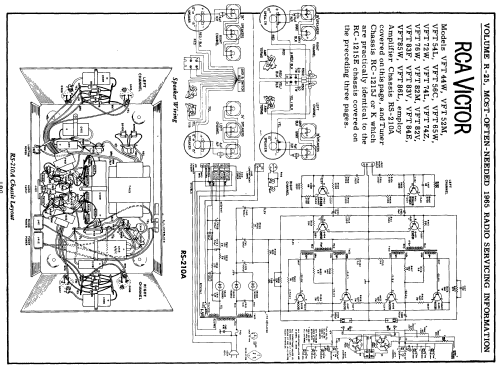

- Circuit diagram reference
- Beitman Radio Diagrams Vol. 25, 1965
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
