For model Victor Q10-3 Ch= RC-594C, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner

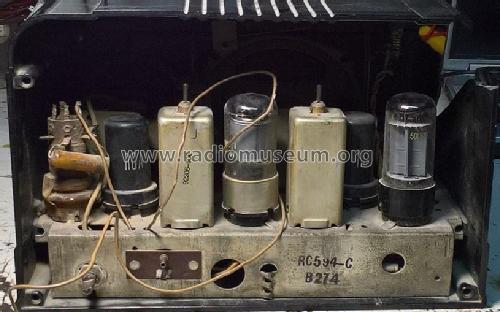

Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 1.25 W (unknown quality)
from Radiomuseum.org Model: Victor Q10-3 Ch= RC-594C - RCA RCA Victor Co. Inc.; New
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 255 x 170 x 160 mm / 10 x 6.7 x 6.3 inch

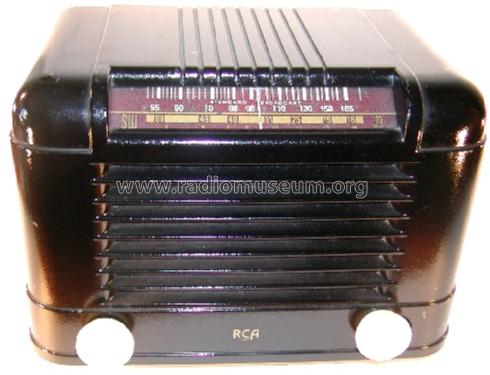

Notes Color black with white knobs. Otherwise simlar to other models of the Q10 series.
Net weight (2.2 lb = 1 kg) 2.750 kg / 6 lb 0.9 oz (6.057 lb)

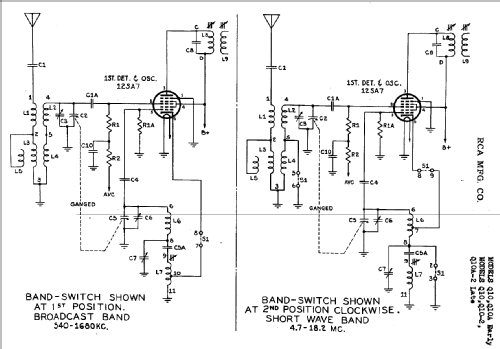

Literature/Schematics (1) RCA Victor Service Notes "Red Book" Series

Model page created by Antonio Dias Rodrigues. See "Data change" for further contributors.
