• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1966 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 96525

• • alternative name: RCA Manufacturing || Victor Talking Machine

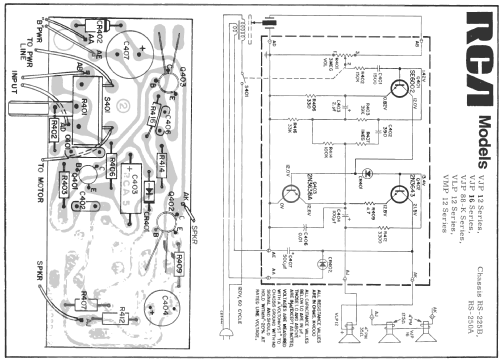

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors

• Main principle
• Audio-Amplification

• Details
• Record Player + Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: VJP 12 Ch= RS-225B - RCA RCA Victor Co. Inc.; New

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 27, 1967-69 (last vol.)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
