For model X-552 Ch= RC-1089C, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1950/1951 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50L6GT 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / Either AC 50 to 60 cycles, 115V or DC 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 1.25 W (1.5 W max.)
from Radiomuseum.org Model: X-552 Ch= RC-1089C - RCA RCA Victor Co. Inc.; New
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 12.25 x 8.625 x 65 inch / 311 x 219 x 1651 mm
Notes

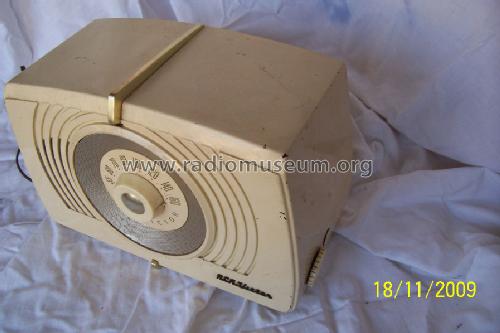

The RCA X552 is a AC/DC operated 5 tube BC band receiver.  Has phono input jack.  Uses Qty(2) type 47 dial lamps. Cabinet color is Ivory.

The BC band frequency range is 540 to 1600kHz.

Early production models used a 500Kohm volume control, which was changed to a 1 Megohm volume control on late production models.  The schematic used for model X552 is the same as is used on model X551 (Which uses chassis RC-1089B). Both models are shown in SAMS Photofact set 129 folder 9 from April 1951.

Net weight (2.2 lb = 1 kg) 6 lb (6 lb 0 oz) / 2.724 kg
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 21, Copyright 1950
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 11, 1951 (Page 110)

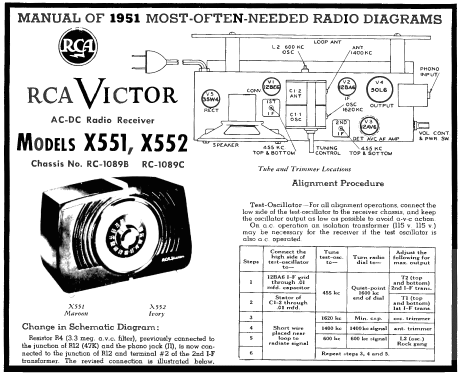

Literature/Schematics (2) RCA Victor Service Notes "Red Book" Series (RCA Victor Service Data Volume VI 1950 Pages 59-60)
Literature/Schematics (3) Rider's Perpetual, Volume 21 = Copyright 1950 (Riders RCA 21-39 to 21-40)

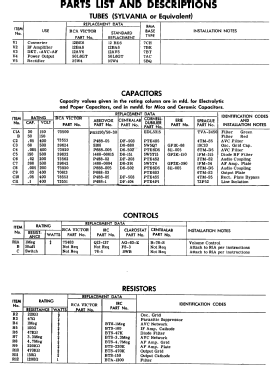

Literature/Schematics (4) Photofact Folder, Howard W. SAMS (Set 129 Folder 9)
