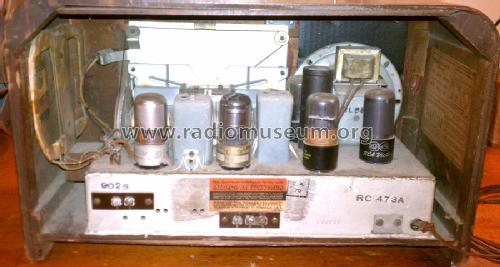

X-55 Ch= RC-473A; RCA RCA Victor Co. (ID = 1607482) Radio X-55 Ch= RC-473A; RCA RCA Victor Co. (ID = 1607485) Radio
X-55 Ch= RC-473A; RCA RCA Victor Co. (ID = 1089193) Radio
Use red slider bar for more.
X-55 Ch= RC-473A; RCA RCA Victor Co. (ID = 1607479) Radio
RCA RCA Victor Co.: X-55 Ch= RC-473A [Radio] ID = 1607479 900x538
Select picture or schematic to display from thumbnails on the right and click for download.
For model X-55 Ch= RC-473A, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: X-55 Ch= RC-473A - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 15.625 x 9.5 x 7 inch / 397 x 241 x 178 mm
Net weight (2.2 lb = 1 kg) 12 lb (12 lb 0 oz) / 5.448 kg
Price in first year of sale 26.95 USD
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in Guide to Old Radios
Literature/Schematics (1) RCA Victor Service Notes "Red Book" Series
