• Country
• Chile

• Manufacturer / Brand
• RCA, Corporacion de radio de Chile S.A.; Santiago de Chile

• Year
• 1949 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106237

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 50B5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Bakelite case

• from Radiomuseum.org
• Model: X-11 Ch= 17923 - RCA, Corporacion de radio de

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 255 x 120 x 93 mm / 10 x 4.7 x 3.7 inch

• Notes

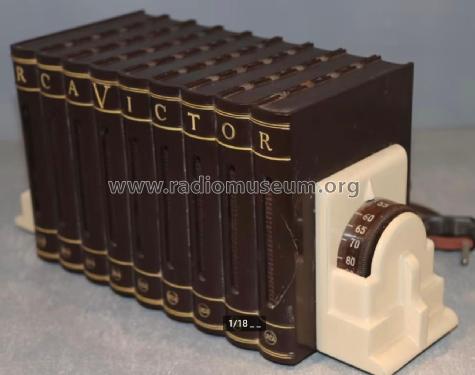

• A guest from Chile, Pedro Barroilhet, told us the following: the RCA Victor X11 "night table" top radio receiver: Our Granny gave to my elder brother one of those radios for Christmas 1949 or maybe one year earlier. At that time its trade name was Aladino under RCA Victor brand. Anyway: The model was made in Chile like a small library, bakelite.

  Hecho en Chile con forma de pequeña biblioteca.

• Source of data
• -- Schematic

• Author
• Model page created by Juan Serrano. See "Data change" for further contributors.
