• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72252

• • alternative name: RCA Manufacturing || Victor Talking Machine

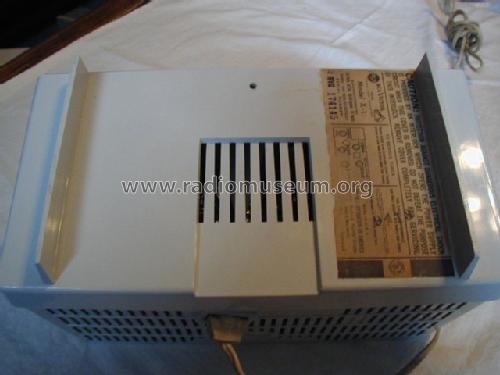

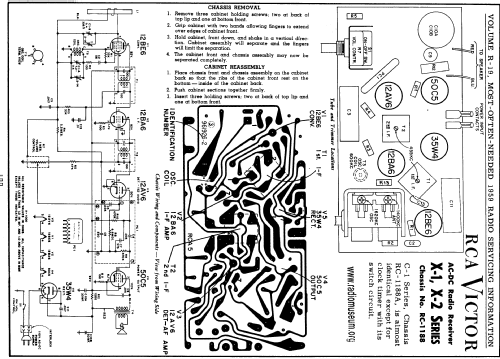

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: X-1 RC-1188 Chassis - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 10.5 x 6.75 x 5.5 inch / 267 x 171 x 140 mm

• Notes
• C-1 Series, Chassis RC-1188A, is almost identical except for clock timer with its switch circuit.

• Net weight (2.2 lb = 1 kg)
• 3 lb 0 oz (3 lb) / 1.362 kg

• Source of data
• Beitman Radio Diagrams, Vol. 19, 1959

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
