• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 138751

• • alternative name: RCA Manufacturing || Victor Talking Machine

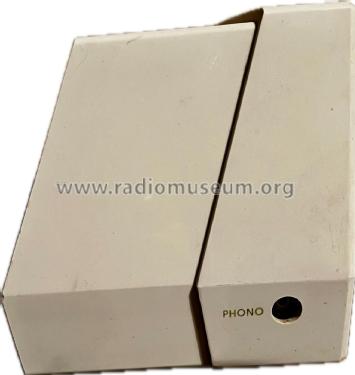

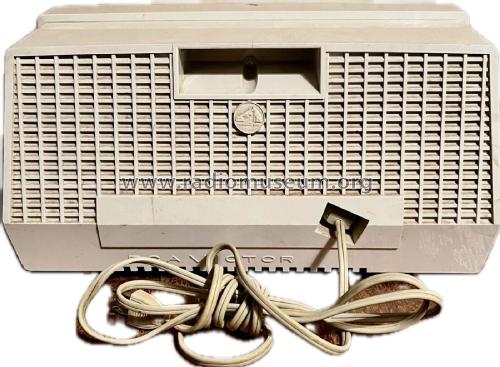

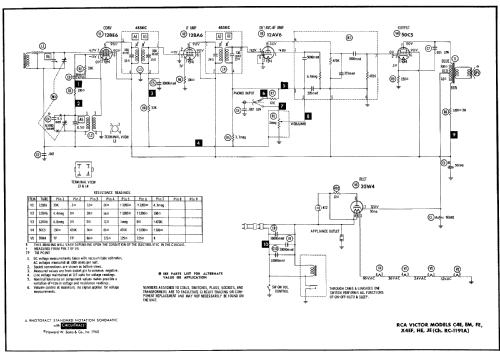

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org
• Model: Filteramic Dual Speakers X-4JE - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 4-60, Set 480, Folder 6)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.

• Other Models

• Here you find 5118 models, 3224 with images and 4149 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
