XF-3EH

RCA (RCA Victor Co. Inc.); New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1959 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 143145
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • AC/DC-set / 110 - 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: XF-3EH - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 15 x 8.5 x 7 inch / 381 x 216 x 178 mm
  • Notes
  • RCA Victor Deluxe XF-3EH;
    AM: 540 - 1600 kHz,
    FM: 88 - 108 MHz,
    screw terminals for ext. or int. FM antenna, 35 W power consumption.

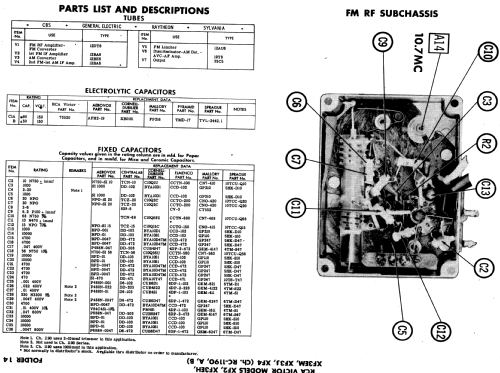

    Oval speaker 4" × 6". Sams photofact set 479 folder 14 date 3-60 features the RCA models XF2, XF3EH, XF3EM, XF3J and XF4 as the same schematic.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
