• Year
  • 1959 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 78772
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • AC/DC-set / 110 - 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • from Radiomuseum.org

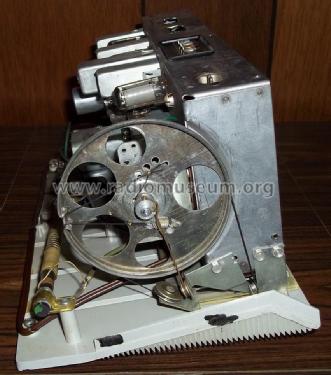

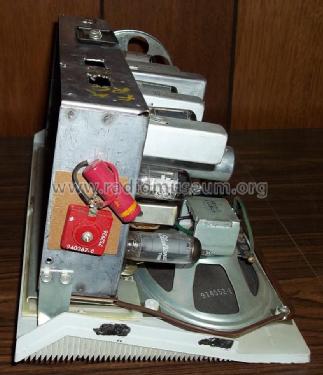

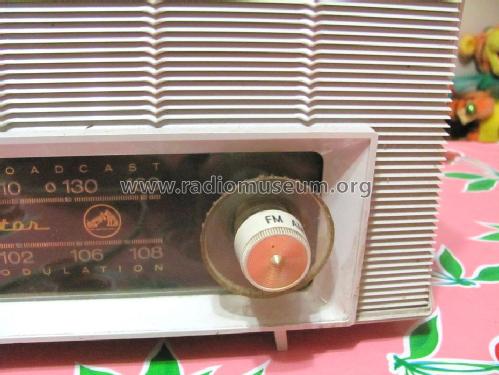

  • Model: XF-2 Ch=RC-1190 - RCA RCA Victor Co. Inc.; New
  • Notes

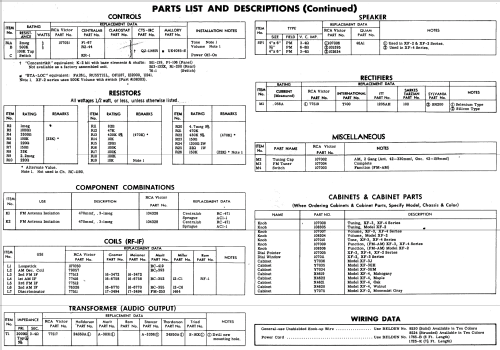

  • Oval speaker 4" × 6". Sams photofact set 479 folder 14 date 3-60 features the RCA models XF2, XF3EH, XF3EM, XF3J and XF4 as the same schematic.
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 20, 1960
  • Author
  • Model page created by Trev Levick. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model XF-2 is part of the collections of the following members.
