• Country
• Chile

• Manufacturer / Brand
• RCA, Corporacion de radio de Chile S.A.; Santiago de Chile

• Year
• 1951 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 286933

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

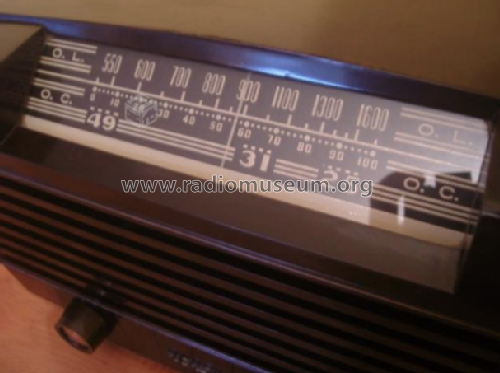

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 1 W (1.5 W max.)

• Material
• Bakelite case

• from Radiomuseum.org

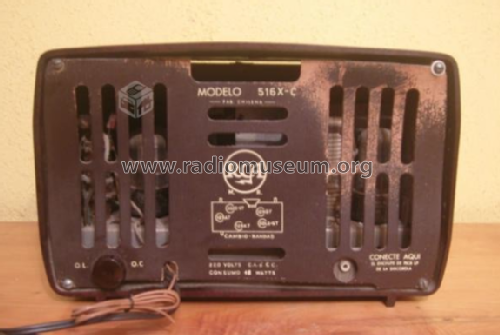

• Model: 516X-C - RCA, Corporacion de radio de

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 290 x 185 x 185 mm / 11.4 x 7.3 x 7.3 inch

• Notes

• 220 volt con resistencia de loza y filamento para transformar a 120 volt interno.
  Entrada Pick Up.

• Mentioned in
• -- Original-techn. papers. (RCA Service Bulletin)

• Author
• Model page created by Maximiliano Herrada. See "Data change" for further contributors.
