• Country
• Chile

• Manufacturer / Brand
• RCA, Corporacion de radio de Chile S.A.; Santiago de Chile

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 121940

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BA6 12BE6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 50 Hz, 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 0.45 W (0.9 W max.)

• Material
• Bakelite case

• from Radiomuseum.org

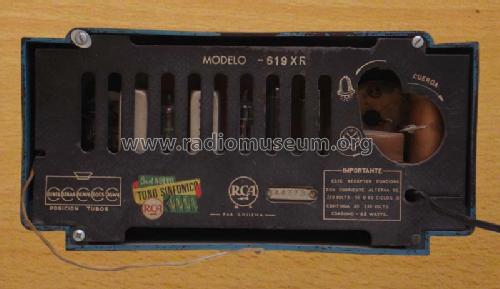

• Model: 619XR - RCA, Corporacion de radio de

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 300 x 135 x 150 mm / 11.8 x 5.3 x 5.9 inch

• Notes
• Radio de velador con reloj mecánico a cuerda, se puede utilizar como despertador

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Leonardo Ruz. See "Data change" for further contributors.
