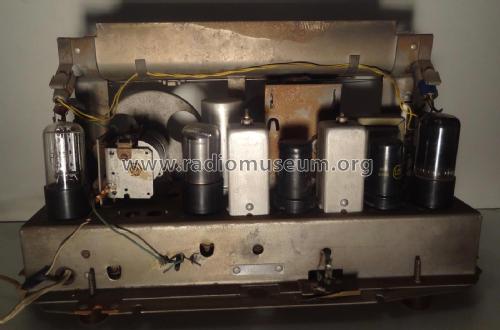

Q-304 ; RCA, Corporacion de (ID = 2078030) Radio Q-304 ; RCA, Corporacion de (ID = 2078031) Radio
Q-304 ; RCA, Corporacion de (ID = 2078032) Radio
Use red slider bar for more.
Q-304 ; RCA, Corporacion de (ID = 2078030) Radio
RCA, Corporacion de: Q-304 [Radio] ID = 2078030 1400x1228
Select picture or schematic to display from thumbnails on the right and click for download.
For model Q-304, RCA, Corporacion de radio de Chile S.A.; Santiago de Chile:

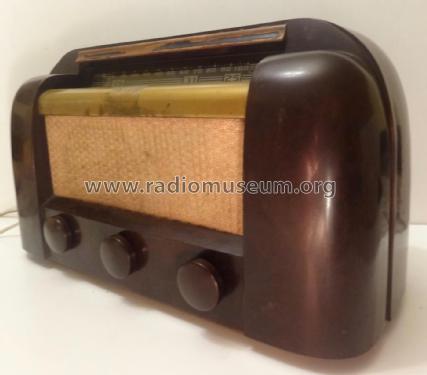

Frente

Country:  Chile
Manufacturer / Brand:  RCA, Corporacion de radio de Chile S.A.; Santiago de Chile
Year: 1947 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 35L6 35Z5
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 1 W (1.8 W max.)
from Radiomuseum.org Model: Q-304 - RCA, Corporacion de radio de
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 380 x 220 x 195 mm / 15 x 8.7 x 7.7 inch
Notes

2 ampolletas piloto Mazda 47, cable con resistencia a toma de corriente.

Model page created by Maximiliano Herrada. See "Data change" for further contributors.
