VIK 5-R-4

VIK 5-R-4; RCA, Corporacion de (ID = 2069578) Radio VIK 5-R-4; RCA, Corporacion de (ID = 2069579) Radio
VIK 5-R-4; RCA, Corporacion de (ID = 2069580) Radio VIK 5-R-4; RCA, Corporacion de (ID = 2069581) Radio
VIK 5-R-4; RCA, Corporacion de (ID = 2069582) Radio
Use red slider bar for more.
VIK 5-R-4; RCA, Corporacion de (ID = 2069578) Radio
RCA, Corporacion de: VIK 5-R-4 [Radio] ID = 2069578 1400x1057
Select picture or schematic to display from thumbnails on the right and click for download.
For model VIK 5-R-4, RCA, Corporacion de radio de Chile S.A.; Santiago de Chile:
Frente

Country:  Chile
Manufacturer / Brand:  RCA, Corporacion de radio de Chile S.A.; Santiago de Chile
Year: 1963 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50C5 35W4
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 2 W (unknown quality)
from Radiomuseum.org Model: VIK 5-R-4 - RCA, Corporacion de radio de
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 263 x 165 x 117 mm / 10.4 x 6.5 x 4.6 inch
Notes

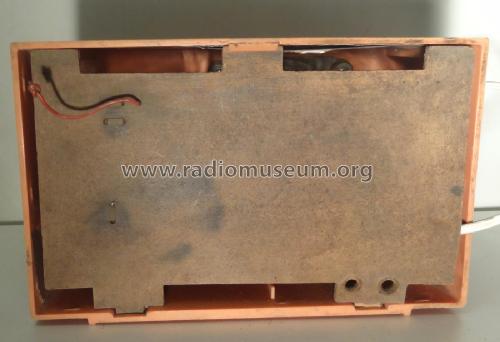

Antena de cuadro adherida internamente a tapa posterior.
Cordón con resistencia.

Model page created by Maximiliano Herrada. See "Data change" for further contributors.
