• Year
  • 1940 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 279513

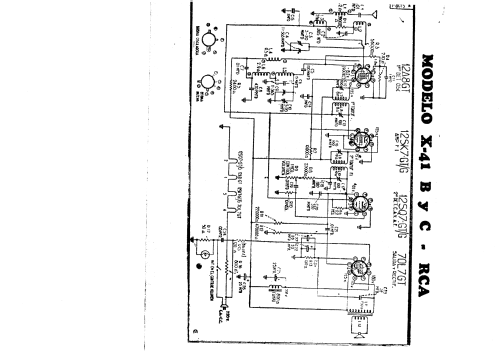

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • AC/DC-set / 220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 cm = 4.7 inch
  • Power out
  • 3 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: X-41 B / C - RCA, Corporacion de radio de
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 300 x 210 x 165 mm / 11.8 x 8.3 x 6.5 inch
  • Notes
  • Receptor superheterodino para las bandas de onda media y corta (49m-16m).



  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Mentioned in
  • -- Schematic
  • Author
  • Model page created by Omar Ordonez-Rojas. See "Data change" for further contributors.
