X-44

X-44; RCA, Corporacion de (ID = 2402424) Radio

X-44; RCA, Corporacion de (ID = 2098205) Radio
X-44; RCA, Corporacion de (ID = 2082139) Radio X-44; RCA, Corporacion de (ID = 2082140) Radio
X-44; RCA, Corporacion de (ID = 2082141) Radio
Use red slider bar for more.
X-44; RCA, Corporacion de (ID = 2082139) Radio
RCA, Corporacion de: X-44 [Radio] ID = 2082139 1400x1025

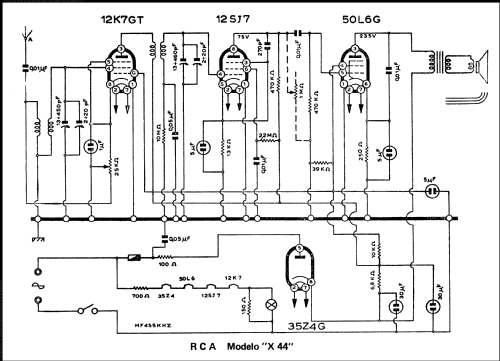

Select picture or schematic to display from thumbnails on the right and click for download.
For model X-44, RCA, Corporacion de radio de Chile S.A.; Santiago de Chile:
Frente. Botones no originales. Tela original.

Country:  Chile
Manufacturer / Brand:  RCA, Corporacion de radio de Chile S.A.; Santiago de Chile
Year: 1955 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 12K7GT 12SJ7 50L6GT 35Z4GT
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 4 W (unknown quality)
from Radiomuseum.org Model: X-44 - RCA, Corporacion de radio de
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 265 x 160 x 145 mm / 10.4 x 6.3 x 5.7 inch

Model page created by Maximiliano Herrada. See "Data change" for further contributors.



All listed radios etc. from RCA, Corporacion de radio de Chile S.A.; Santiago de Chile
Here you find 58 models, 56 with images and 18 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
