UKW/MW/LW Radio Cassetten Recorder RD-485

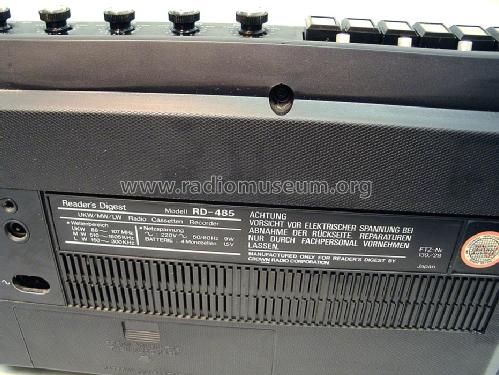

UKW/MW/LW Radio Cassetten Recorder RD-485; Reader's Digest, (ID = 1302992) Radio UKW/MW/LW Radio Cassetten Recorder RD-485; Reader's Digest, (ID = 1302993) Radio
Use red slider bar for more.
UKW/MW/LW Radio Cassetten Recorder RD-485; Reader's Digest, (ID = 1302992) Radio
Reader's Digest,: UKW/MW/LW Radio Cassetten Recorder RD-485 [Radio] ID = 1302992 933x633
Select picture or schematic to display from thumbnails on the right and click for download.
For model UKW/MW/LW Radio Cassetten Recorder RD-485, Reader's Digest, Zürich

Country:  Switzerland
Manufacturer / Brand:  Reader's Digest, Zürich
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220; 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: UKW/MW/LW Radio Cassetten Recorder RD-485 - Reader's Digest, Zürich
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 340 x 210 x 95 mm / 13.4 x 8.3 x 3.7 inch

Model page created by Jörg Holtzapfel. See "Data change" for further contributors.



All listed radios etc. from Reader's Digest, Zürich
Here you find 5 models, 5 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
