Realistic 12-171

Realistic 12-171; Radio Shack Tandy, (ID = 758952) Radio
Realistic 12-171; Radio Shack Tandy, (ID = 2270331) Radio Realistic 12-171; Radio Shack Tandy, (ID = 2270330) Radio
Realistic 12-171; Radio Shack Tandy, (ID = 2270333) Radio Realistic 12-171; Radio Shack Tandy, (ID = 2270332) Radio

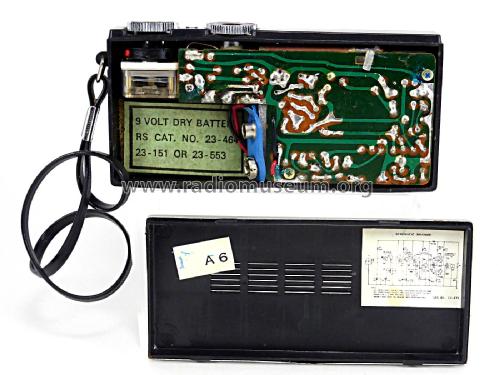

Realistic 12-171; Radio Shack Tandy, (ID = 2270334) Radio Realistic 12-171; Radio Shack Tandy, (ID = 746541) Radio
Realistic 12-171; Radio Shack Tandy, (ID = 771165) Radio Realistic 12-171; Radio Shack Tandy, (ID = 1079171) Radio
Realistic 12-171; Radio Shack Tandy, (ID = 746543) Radio Realistic 12-171; Radio Shack Tandy, (ID = 746544) Radio
Use red slider bar for more.
Realistic 12-171; Radio Shack Tandy, (ID = 2270331) Radio
Radio Shack Tandy,: Realistic 12-171 [Radio] ID = 2270331 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Realistic 12-171, Radio Shack (Tandy, Realistic, Micronta); USA

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1976 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm
Power out
from Radiomuseum.org Model: Realistic 12-171 - Radio Shack Tandy, Realistic,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 112 x 54 x 27 mm / 4.4 x 2.1 x 1.1 inch
Notes Color: black and silver. Slide Rule Dial (Rechenschieberskala / Linearskala).
Net weight (2.2 lb = 1 kg) 0.180 kg / 0 lb 6.3 oz (0.396 lb)
Price in first year of sale 7.95 $
Mentioned in Radio Shack Catalog (1979, page 170; 1982, page 142; 1983, page 142.)

Model page created by Peter Hoddow. See "Data change" for further contributors.
