Realistic Astronaut 8 12-751A

Realistic Astronaut 8 12-751A; Radio Shack Tandy, (ID = 1285353) Radio Realistic Astronaut 8 12-751A; Radio Shack Tandy, (ID = 1285354) Radio
Realistic Astronaut 8 12-751A; Radio Shack Tandy, (ID = 1285356) Radio Realistic Astronaut 8 12-751A; Radio Shack Tandy, (ID = 1285358) Radio
Use red slider bar for more.

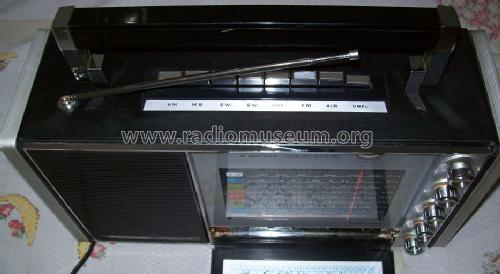

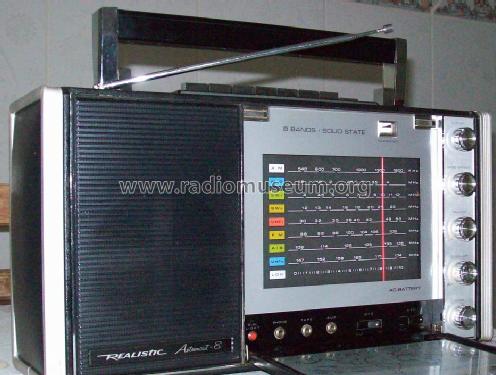

Realistic Astronaut 8 12-751A; Radio Shack Tandy, (ID = 1285353) Radio
Radio Shack Tandy,: Realistic Astronaut 8 12-751A [Radio] ID = 1285353 933x705
Select picture or schematic to display from thumbnails on the right and click for download.
For model Realistic Astronaut 8 12-751A, Radio Shack (Tandy, Realistic, Micronta); USA:
By courtesy of guest Rodrigo Santana, Rincão-SP, Brasil.

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1975 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, more than 2 SW bands plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 117; 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Realistic Astronaut 8 12-751A - Radio Shack Tandy, Realistic,
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Notes Additional to BC and FM: Marine Band: 1,6 - 4 MHz, SW1 4 - 12 MHz, SW2 12 - 22 MHz, VHF1: 30 - 50 MHz, Air 108 - 135 MHz, VHF2 147 - 174 MHz, BFO.
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.
