Constellation TR-861-PL

Constellation TR-861-PL; Realtone Israel; (ID = 1381035) Radio Constellation TR-861-PL; Realtone Israel; (ID = 1381036) Radio
Constellation TR-861-PL; Realtone Israel; (ID = 1381037) Radio Constellation TR-861-PL; Realtone Israel; (ID = 1381038) Radio
Constellation TR-861-PL; Realtone Israel; (ID = 1381040) Radio Constellation TR-861-PL; Realtone Israel; (ID = 1381041) Radio
Constellation TR-861-PL; Realtone Israel; (ID = 1381042) Radio Constellation TR-861-PL; Realtone Israel; (ID = 1381043) Radio
Use red slider bar for more.
Constellation TR-861-PL; Realtone Israel; (ID = 1381035) Radio

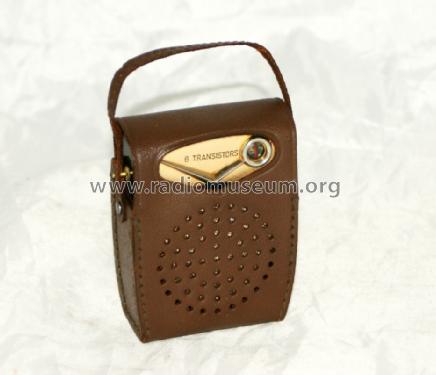

Realtone Israel;: Constellation TR-861-PL [Radio] ID = 1381035 933x736
Select picture or schematic to display from thumbnails on the right and click for download.
For model Constellation TR-861-PL, Realtone Israel; (where?):
Israel_Realtone_Constellation_TR-861-PL

Country:  Israel
Manufacturer / Brand:  Realtone Israel; (where?)
Year: 1961 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2SA160 2SA156 2SA156 2SB111 2SB116 2SB116
Main principle Super-Heterodyne (Super in general); 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.1 cm = 2 inch
Power out
from Radiomuseum.org Model: Constellation TR-861-PL - Realtone Israel; where?
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 70 x 100 x 30 mm / 2.8 x 3.9 x 1.2 inch
Notes

Rückseite mit Prägung Israel, wohl israelische Lizenzfertigung.
An Stelle der Ohrhörerbuchse befindet sich ein Zugschalter für die Wellenbereichs-Umschaltung MW-LW.

Siehe auch Realtone Constellation TR-861-1 mit nur MW-Empfang.
