Kings Point CB Monitor FM-AM Car Radio KP-220

Kings Point Corp.; New Jersey

  • Year
  • 1975 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 307218

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Power type and voltage
  • Batteries / addl. power jack / 9 / 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
  • Power out
  • 0.2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Kings Point CB Monitor FM-AM Car Radio KP-220 - Kings Point Corp.; New Jersey
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 185 x 120 x 40 mm / 7.3 x 4.7 x 1.6 inch
  • Notes

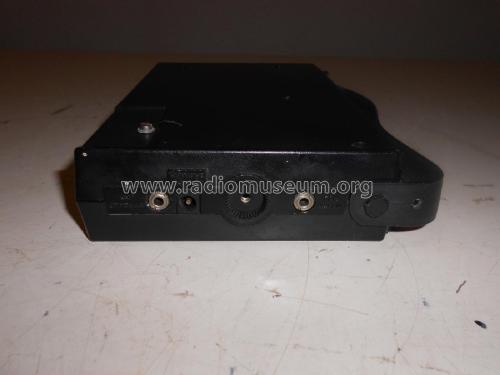

  • Volume / squelch control - external telescopic antenna - CB / AM / FM switcher - headphone jack - socket for external power supply - external antenna socket - support bracket - carrying handle - frequency range: AM 540/1605 kHz - FM 88 / 108 MHz - CB 26.965 / 27.405 MHz.

    Controllo volume/squelch - antenna telescopica esterna - commutatore CB/AM/FM - presa per cuffia - presa per alimentazione esterna - presa per antenna esterna - staffa di supporto - maniglia di trasporto - frequency range: AM 540/1605 kHz - FM 88/108 MHz - CB 26.965/27.405 MHz.

  • Net weight (2.2 lb = 1 kg)
  • 0.650 kg / 1 lb 6.9 oz (1.432 lb)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
