- Country
- United States of America (USA)
- Manufacturer / Brand
- Soundesign Corporation; Jersey City, NJ
- Year
- 1980 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 216095
- Number of Transistors
- 16
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 110-120 / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 2443 - Soundesign Corporation; Jersey
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 9.5 x 7 x 3.5 inch / 241 x 178 x 89 mm
- Notes

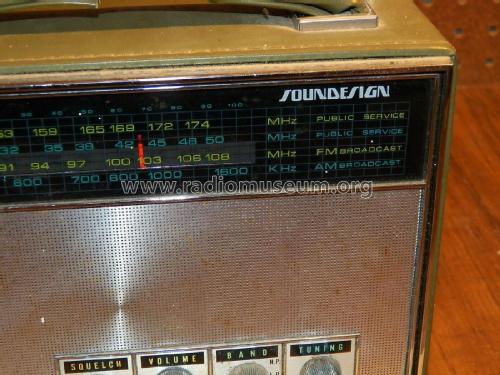

- Soundesign portable 4 band radio model 2443.
FM, AM, Hi-Police, Lo-Police.
28 Solid State Devices (14 Transistors, 2 Transistors in Squelch, 10 Diodes, 1 Full Wave Rectifier, 1 Thermistor).
Power consumption 2 watts.
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
