• Year
  • 1980 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 156829

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Line / Batteries (any type) / 117 or 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 2444 - Soundesign Corporation; Jersey
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

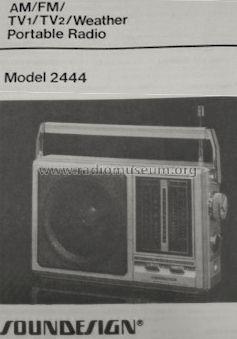

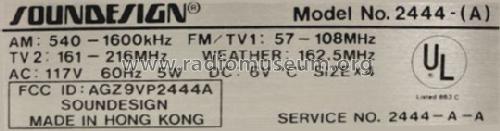

  • Soundesign 2444 [2444-(A)] Deluxe Multiband Radio;
    AM: 540 - 1600 KHz, FM/TV1: 57 - 108 MHz,
    TV2: 161 - 216 MHz, Weather: 162.5 MHz,
    earphones jack, 5 W mains power consumption.

    Made in Hong Kong

  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
