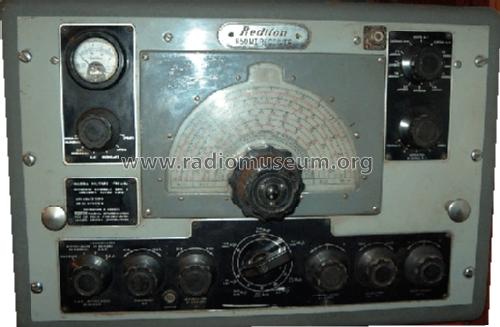

Communications Receiver R50M; Redifon Ltd.; London (ID = 1412336) Radio
Redifon Ltd.; London: Communications Receiver R50M [Radio] ID = 1412336 517x339
Select picture or schematic to display from thumbnails on the right and click for download.
For model Communications Receiver R50M, Redifon Ltd.; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Redifon Ltd.; London
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner

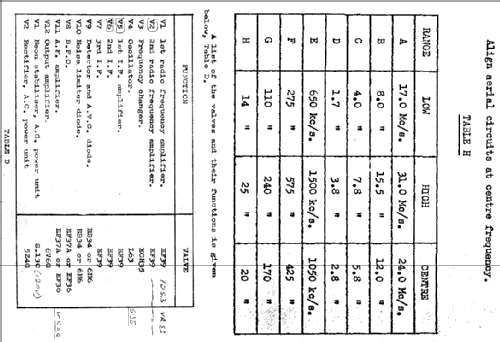

Valves / Tubes 13: EF39 EF39 ECH35 L63 EF39 EF39 EF39 EB34 EB34 EF37A EF37A 6V6 5Z4
Main principle Superheterodyne (common); ZF/IF 465 / 110 kHz; 3 AF stage(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Communications Receiver R50M - Redifon Ltd.; London
Material Metal case
Shape Boatanchor (heavy military or commercial set >20 kg).
Dimensions (WHD) 545 x 375 x 530 mm / 21.5 x 14.8 x 20.9 inch
Notes Frequency coverage 13.5 to 26 kHz and 95 kHz to 32 MHz.
5 selectivity settings.

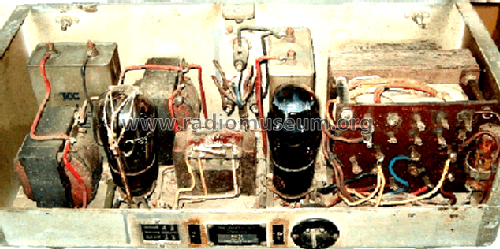

Separate power supplies for ac or dc operation available.
Net weight (2.2 lb = 1 kg) 40 kg / 88 lb 1.7 oz (88.106 lb)

Model page created by Roy Johnson. See "Data change" for further contributors.
