• Country
• France

• Manufacturer / Brand
• Reela-Radio, Reela-Gees; Paris

• Year
• 1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 360424

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6BE6 6H8 6M6 6X4 6AF7G

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

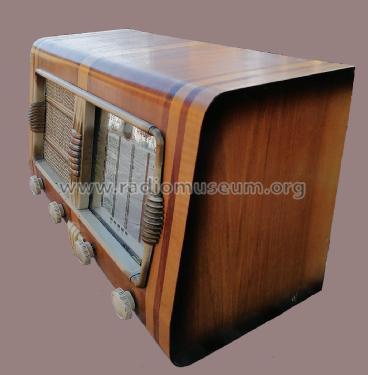

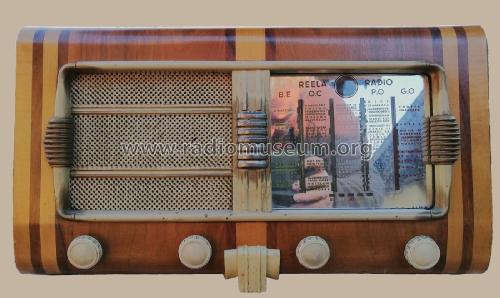

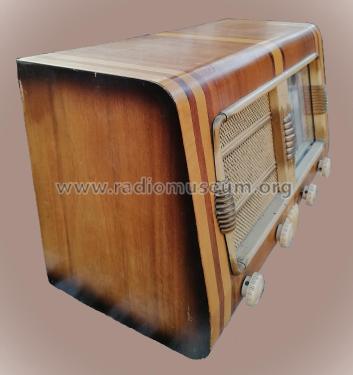

• Model: Ouragan - Reela-Radio, Reela-Gees; Paris

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 470 x 270 x 230 mm / 18.5 x 10.6 x 9.1 inch

• Notes

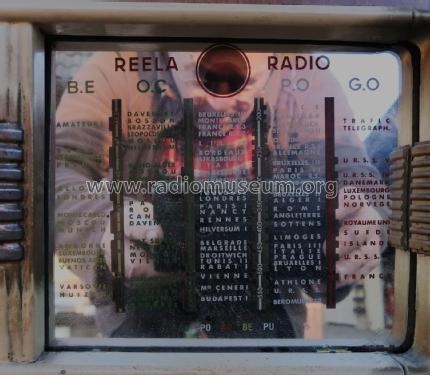

• Gammes d'ondes GO, PO, OC et BE (bande étalée)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Roland Michael Steinscherer-Silly. See "Data change" for further contributors.
