• Country
• France

• Manufacturer / Brand
• Reela-Radio, Reela-Gees; Paris

• Year
• 1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 145418

• Number of Tubes
• 6

• Valves / Tubes
• 6AV6 6BE6 6BA6 6AQ5 6AF7G EZ80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

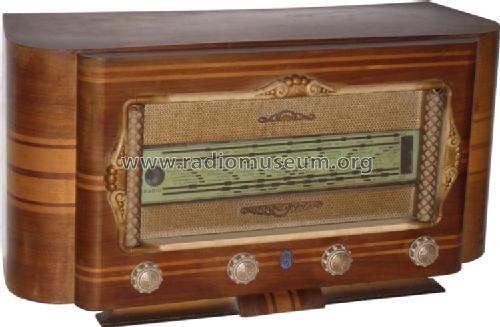

• Model: Prestige NM [Cadran horizontal] - Reela-Radio, Reela-Gees; Paris

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 585 x 292 x 220 mm / 23 x 11.5 x 8.7 inch

• Net weight (2.2 lb = 1 kg)
• 7.7 kg / 16 lb 15.4 oz (16.96 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Karlheinz Gützlaff. See "Data change" for further contributors.
