- Country
- United States of America (USA)
- Manufacturer / Brand
- Regal; New York (NY)
- Year
- 1953/1954 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 196564
-
- Brand: Ultradyne
Source Sams Photofact

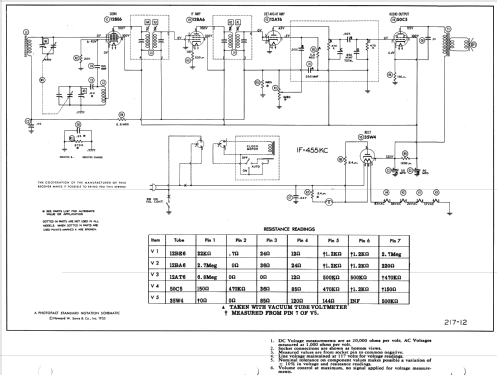

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / AC/DC,117V=110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 472 - Regal; New York NY
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Regal model 472 is an AC-DC operated AM superheterodyne receiver.
Small upright trapezoidal plastic case. Chassis possibly from Emerson 706B / 707B /708B (#120156)?Available in choice of 9 colors: Ebony, Ivory, Walnut, Grey, Pink, Red, Blue, Green, Canary.
- Source of data
- Machine Age to Jet Age III
- Literature/Schematics (1)

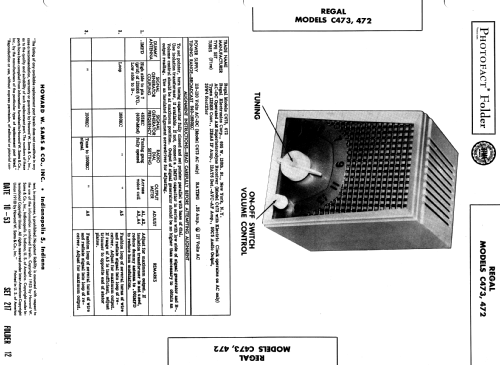

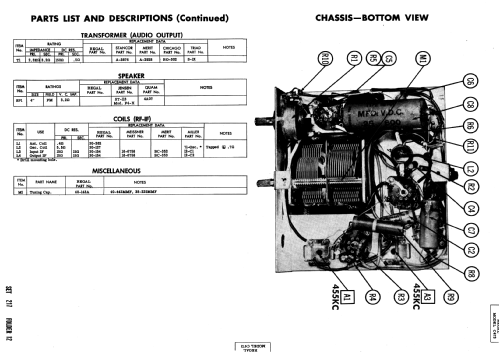

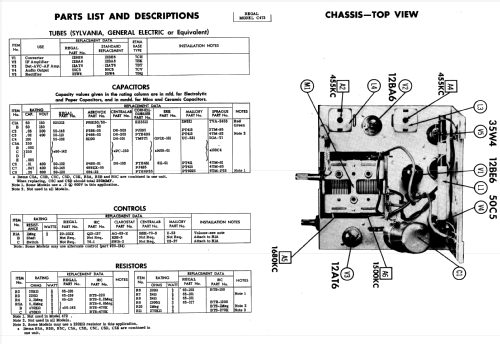

- Photofact Folder, Howard W. SAMS (Set 217, folder 12, dated 10-53)
- Literature/Schematics (3)
- Shown for Season 1953/54 for 1954 in Regal Folder.
- Author
- Model page created by Richard Watts. See "Data change" for further contributors.
