• Country
• United States of America (USA)

• Manufacturer / Brand
• Regency (brand of I.D.E.A.)

• Year
• 1974

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 229982

• • alternative name: Idea (I.D.E.A.)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 24

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 60 Hz, 105 - 130 / DC 11 - 15 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (2 W max.)

• Material
• Metal case

• from Radiomuseum.org

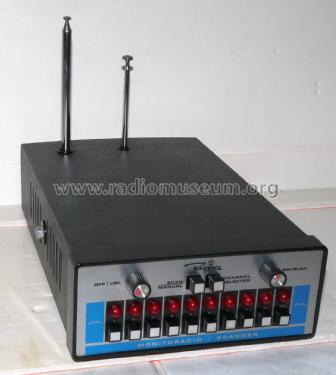

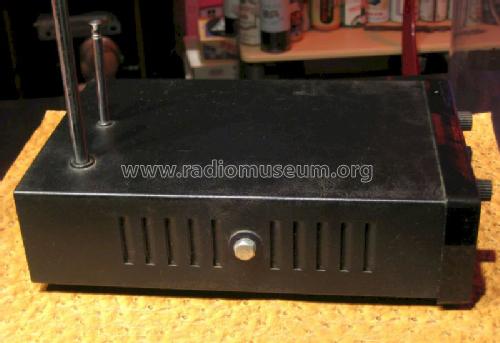

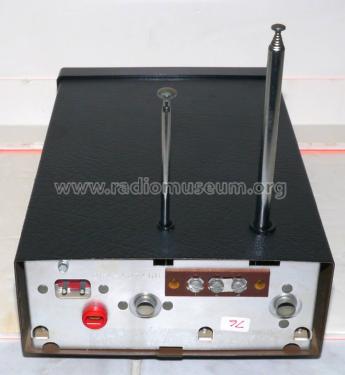

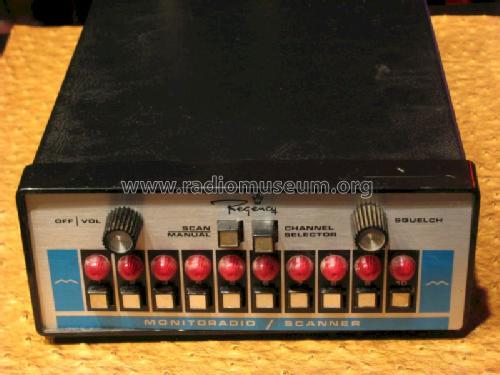

• Model: Monitoradio / Scanner ACT-R10H/L/U - Regency brand of I.D.E.A.

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 6.5 x 2.62 x 9.75 inch / 165 x 67 x 248 mm

• Notes

• 10 Channels. Xtal controlled.

  VHF Low Band: 30 - 50 MHz,
  VHF High Band: 148 - 174 MHz,
  UHF Band: 450 - 470 MHz.

  13 W power consumption on AC and 9 W on DC



• Net weight (2.2 lb = 1 kg)
• 3 lb 4 oz (3.25 lb) / 1.476 kg

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by a member from A. See "Data change" for further contributors.
